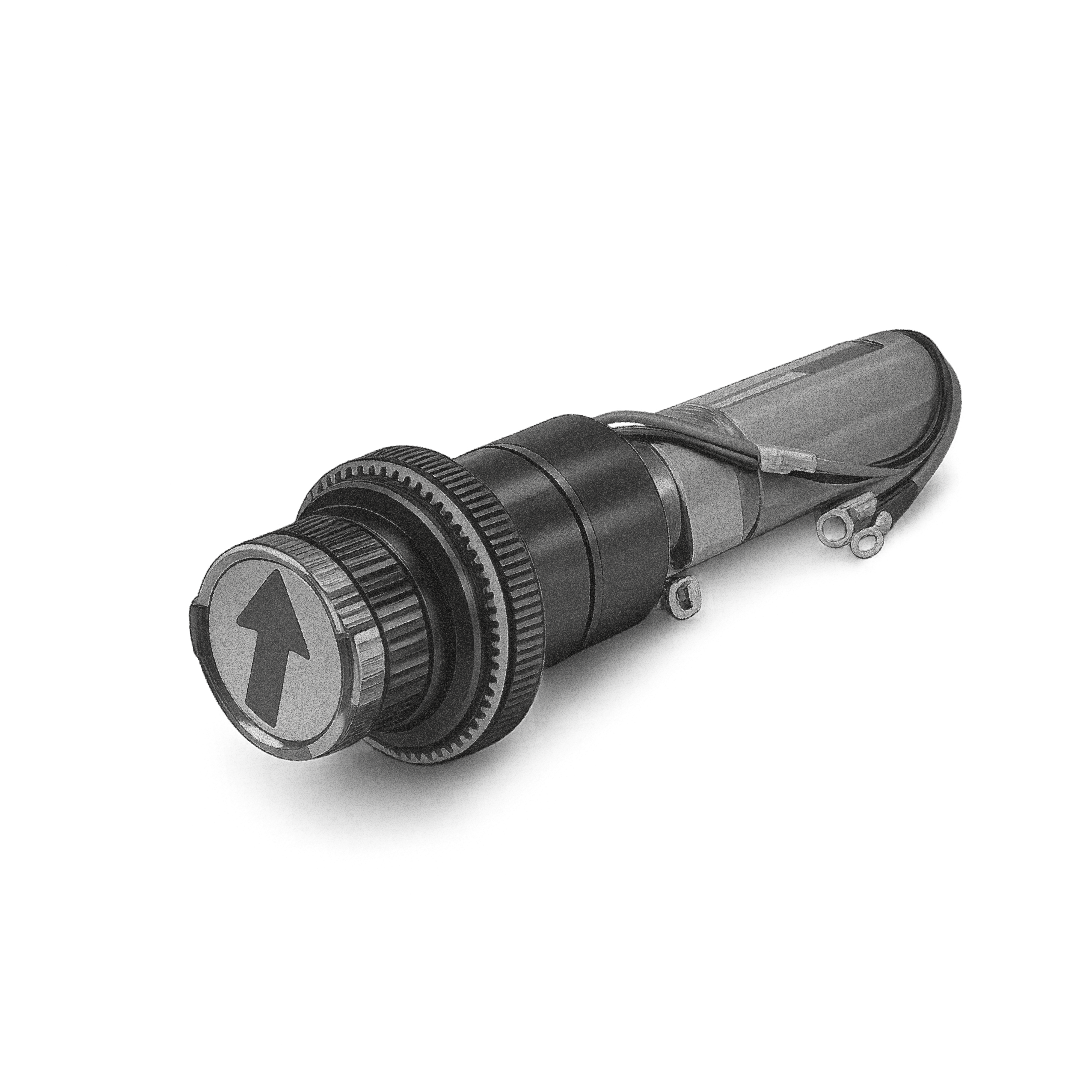

SW44175
Backlit potentiometer + switch
DESCRIPTION
Electro-Mech’s SW44175 backlit potentiometer switch offers both rotary and push-on/push-off functionality plus back-lighting for maximum operation control. The SPDT switch enables the user to specify a value so that at the push of a button, the circuit or channel automatically opens at the pre-set level. 3/4” pushbutton lens assembly allows insertion of custom legends. Illumination features four discrete LED’s with built in resistor for illumination at 24vdc.
Configuration
SPDT Alternate Action switching
3/4″ diameter round button which rotates
7/8″ diameter round mounting hole
Backlit with four discrete green LED
Specifications
30VDC OR 115VAC, 2A RESISTIVE, 0.5A INDUCTIVE
4 GRAMS (APPROX.)
2 LBS. + 1 LB.
0.24” APPROX.
50,000 MINIMUM
SILVER PLATED (GOLD PLATED CONTACTS AVAILABLE)
SWITCH: SOLDER LUG TERMINALS; POT.: HOOKED PC PINS
3/4” DIAMETER, CLEAR OVERCAP, CUSTOM LEGENDS AVAIL.
BUILT IN: FOUR T 1-3/4 GREEN DISCRETE LED’S WITH RESISTOR; ILLUMINATES AT 24VDC
